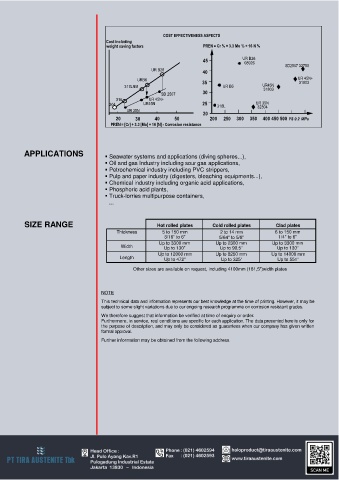

Page 7 - SD 2507

COST EFFECTIVENESS ASPECTS
Cost including
weight saving factors PREN = Cr % + 3.3 Mo % + 16 N %

45 UR B26
08926
SD2507 32750
UR B26
40
URB6 35 UR 45N+
31803
317LNM UR B6 UR45N
31803
SD 2507 30
316 UR 45N+
304 UR45N 25 316L UR 35N
32304
UR 35N
20
20 30 40 50 200 250 300 350 400 450 500 YS 0.2 MPa
PREN = [Cr] + 3.3 [Mo] + 16 [N] - Corrosion resistance

APPLICATIONS  Seawater systems and applications (diving spheres...),
 Oil and gas Industry including sour gas applications,
 Petrochemical industry including PVC strippers,
 Pulp and paper industry (digesters, bleaching equipments...),
 Chemical industry including organic acid applications,
 Phosphoric acid plants,
 Truck-lorries multipurpose containers,
...

SIZE RANGE Hot rolled plates Cold rolled plates Clad plates
Thickness 5 to 150 mm 2 to 14 mm 6 to 150 mm
3/16" to 6" 5/64" to 5/8" 1/4" to 6"
Up to 3300 mm Up to 2300 mm Up to 3300 mm
Width Up to 130" Up to 90.5" Up to 130"
Up to 12000 mm Up to 8250 mm Up to 14000 mm
Length Up to 472" Up to 325" Up to 551"
Other sizes are available on request, including 4100mm (161,5")width plates

NOTE
This technical data and information represents our best knowledge at the time of printing. However, it may be
subject to some slight variations due to our ongoing research programme on corrosion resistant grades.
We therefore suggest that information be verified at time of enquiry or order.
Furthermore, in service, real conditions are specific for each application. The data presented here is only for
the purpose of description, and may only be considered as guarantees when our company has given written
formal approval.
Further information may be obtained from the following address.
