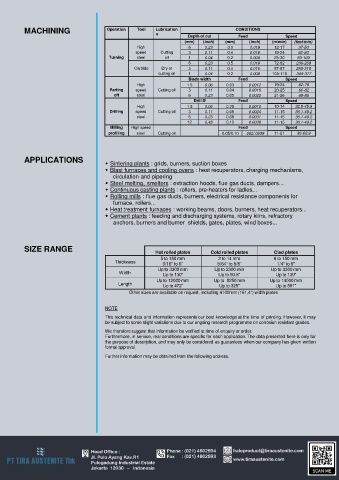

Page 4 - SH 253
P. 4

MACHINING                    Operation   Tool   Lubrication
                                                        n
                                                                   Depth of cut
                                                                  (mm)   (inch)   (mm)   (inch)   (m/min)   (feet/min)
                                                                         0.23            0.019   12-17    37-50
                                                                                                 19-24
                                                                                                          62-80
                                                                                         0.016
                                                                         0.11
                                         Turning         Cutting         0.04            0.008   25-30   83-100

                                                                         0.23            0.019   72-82   236-269
                                                 Carbide      Dry or      0.11           0.016   87-97   285-318
                                                         cutting         0.04            0.008   105-115   344-377
                                                                   Blade width
                                                                         0.06           0.0012   19-24    62-79
                                        Parting          Cutting         0.11           0.0016   20-25    66-82
                                         off                             0.23           0.0020   21-26    69-85
                                                                     Drill
                                                                         0.06           0.0010   10-14   32.8-45.9
                                        Drilling         Cutting         0.11           0.0024   11-15   36.1-49.2
                                                                         0.23           0.0031   11-15   36.1-49.2
                                                                         0.48           0.0039   11-15   36.1-49.2
                                        Milling   High
                                       profiling         Cutting               0.05/0.10   .002/.0039   11-21   36-68.9



          APPLICATIONS                    Sintering plants : grids, burners, suction boxes

                                        Blast furnaces and cooling ovens : heat recuperators, charging mechanisms,
                                         circulation and pipering
                                        Steel melting, smelters : extraction hoods, flue gas ducts, dampers...
                                        Continuous casting plants : rollers, pre-heaters for ladles...
                                        Rolling mills : flue gas ducts, burners, electrical resistance components for
                                         furnace, rollers...
                                        Heat treatment furnaces : working beams, doors, burners, heat recuperators...

                                        Cement plants : feeding and discharging systems, rotary kilns, refractory
                                         anchors, burners and burner  shields, gates, plates, wind boxes...



          SIZE RANGE                                    Hot rolled plates      Cold rolled plates      Clad plates


                                                                              2 to 14
                                         Thickness       5 to 150            5/64" to 5/8"       6 to 150
                                                                                                  1/4" to
                                                          3/16" to 6"
                                                        Up to 3300          Up to 2300          Up to 3300
                                                          Up to               Up to               Up to
                                                        Up to 12000         Up to  8250         Up to 14000
                                           Length         Up to               Up to               Up to
                                              Other sizes are available on request, including 4100mm (161,4") width plates


                                      NOTE

                                      This technical data and information represents our best knowledge at the time of printing. However, it may
                                      be subject to some slight variations due to our ongoing research programme on corrosion resistant grades.

                                      We therefore suggest that information be verified at time of enquiry or order.
                                      Furthermore, in service, real conditions are specific for each application. The data presented here is only for
                                      the purpose of description, and may only be considered as guarantees when our company has given written
                                      formal approval.
